Key Features:

• Sound absorption performance: NRC up to 0.80, Class A acoustic rating available

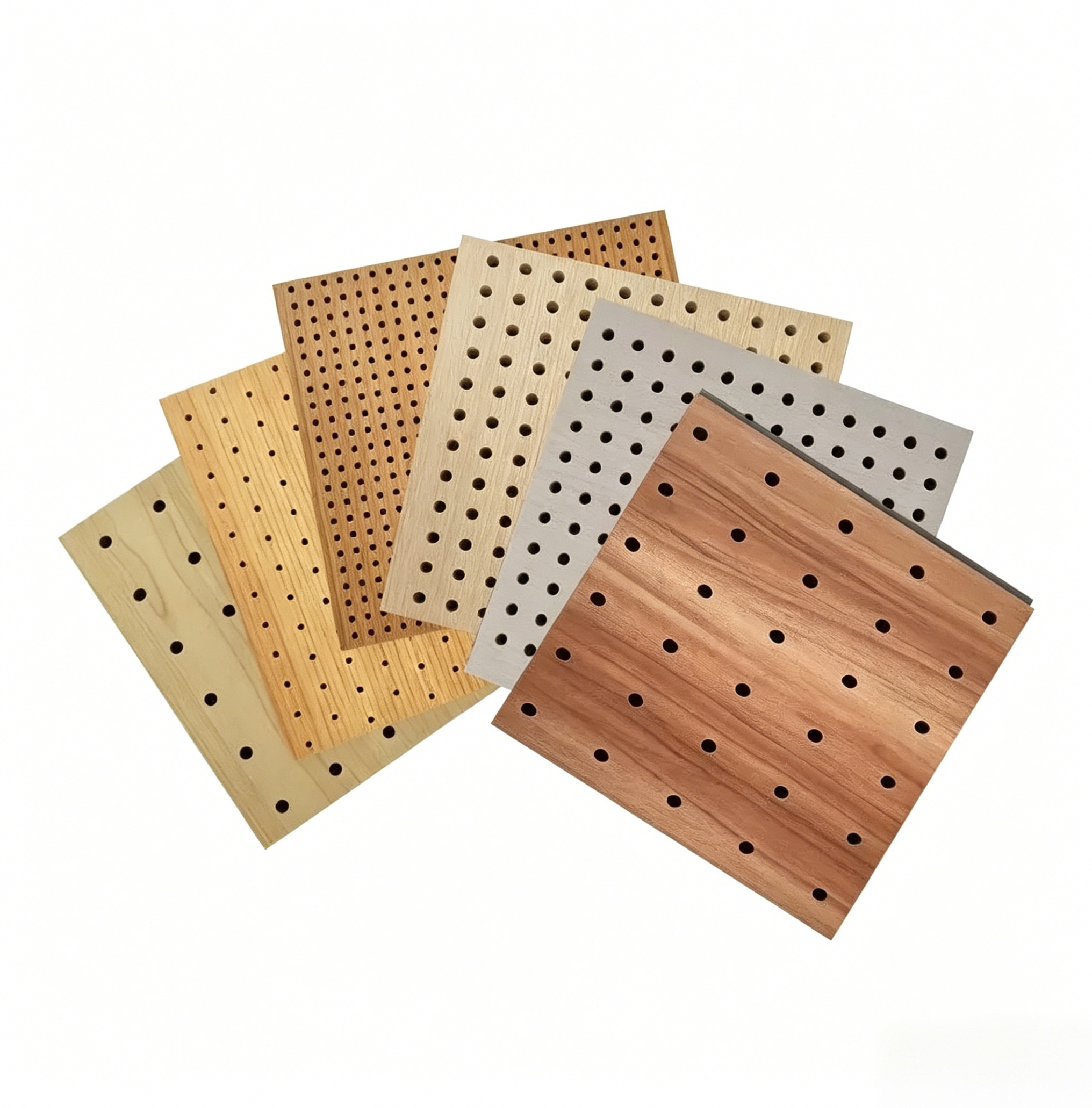

• Multiple styles: slatted, perforated, grooved, and custom patterns

• Materials: high-density MDF/HDF, natural wood veneer, recycled PET felt backing

• Fire safety: Class B1 or A2 fire-rated options available

• Eco-friendly: FSC-certified wood, low-VOC, and E1/E0 formaldehyde emission compliance

• Standard sizes: 2400×600mm, 2440×1220mm (4×8 ft), custom sizes available

• Easy installation: tongue & groove, concealed clip, or Velcro mounting systems

Acoustic Performance

Parameter	Specification
Noise Reduction Coefficient (NRC)	0.40 – 0.80 (depending on panel type and backing)
Sound Absorption Class	Class A – Class D (based on NRC rating)
Acoustic Testing Standard	UNI EN ISO 354:2003, UNI EN ISO 11654:1998
Frequency Range	Mid to high frequencies (125–4000 Hz)

Structural Specifications

Parameter	Specification
Panel Type	Slatted, Perforated, Grooved, 3D Sculpted
Core Material	High-density MDF / HDF (15mm, 18mm thickness)
Wood Veneer	Walnut, Oak, Ash, Teak, Maple, or engineered veneer
Backing Material	Acoustic felt (9–12mm, 50–60% recycled fibers), PET felt
Total Thickness	20 – 27mm (standard); up to 70mm (with additional sound-absorbing layer)

Dimensions

Parameter	Specification
Standard Size (Europe/Asia)	2400 × 600 mm, 2800 × 600 mm, 3000 × 600 mm
Standard Size (North America)	1220 × 2440 mm (4×8 ft)
Standard Size (Square)	600 × 600 mm, 581 × 581 mm, 600 × 1200 mm
Slat Width	27mm, 30mm, 35mm (for slatted panels)
Slat Spacing	14 – 20mm
Perforation Diameter	3mm, 6mm (for perforated panels)
Custom Sizes	Available upon request (OEM)
